We often think that vandalism, burglary, theft, fraud happen to others, but to secure a safe environment for your organization, employees and users it is important to react preventively.
Video surveillance as a part of the access control system is an electronic system that monitors the facility from one location and can be applied in the protection of objects of different purposes and sizes (residental, public, industrial...).
Video surveillance system has many functions, most commonly protective, although, video surveillance systems are recently demanded for production, business facilities, traffic regulation...
If access control system - video surveillance implies the registration of working hours, such a system must comply with the provisions of the Private Protection Act (Official Gazette 68/03, 31/10, 139/10) and related Regulations.
PENTA has the approval of the Ministry of the Interior for perfoming the activities of private protection - technical protection, and employs workers with a successfully completed professional qualification exam for performing technical protection tasks.
By advancing technology, video surveillance systems become more accessible and demand for them has increased, especially because of the effective prevention of criminal offenses.
These systems allow you to monitor recorded events on digital recorders that support up to 16 cameras. The system is configured depending on the requirements of the space and the individual user, and the embedded equipment provides crystal clear picture thanks to 20m IR range brightness.

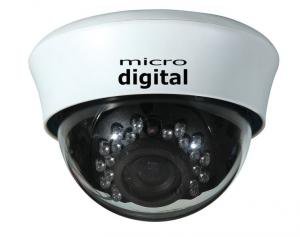

Micro Digital Dome 600 camera has proven to be an excellent choice for indoor installation thanks to the high resolution of 600 TV lines, high sesitivity, 2.8-12 mm varifocal optics, IR LED range of 20 meters, and mounting is possible in all 3 axes.
Tehnical characteristics MD-DOME 600
|IMAGE SENSOR||1/3" CCD|
|RESOLUTION||600TVL, Low Illumination|
|IR RANGE||20 M|
|IR LED||￠5 X 21 PCS|
|LENS||2.8-12mm Manual Zoom Lens (2M Pixels)|
|S/N RATIO||≥52dB (AGC OFF)|
|VIDEO EXIT||Composite Signal (1.0Vp-p, 75Ω)|
|SCANNING SYSTEM||PAL:625 Lines, 50 Field/Sec;NTSC:525 Lines, 60 Field/Sec|
|ELECTRONIC SHUTTER TIME||Auto:PAL 1/50-1/100, 000Sec;NTSC 1/60-1/100, 000Sec|
|OPERATING TEMPERATURE||-10℃ ~ +50℃ RH95% Max|
|STORAGE TEMPERATURE||-20℃ ~ +60℃ RH95% Max|
|POWER SUPPLY||DC12V 350mA|
|DIMENSIONS||￠149 x 99(H) mm|
