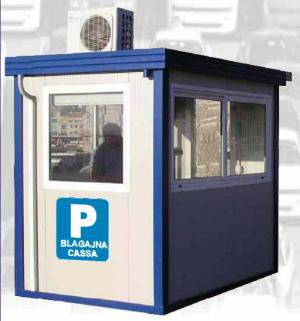

CABINE M3

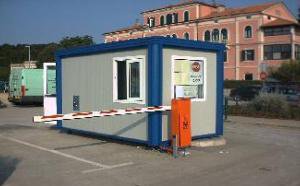

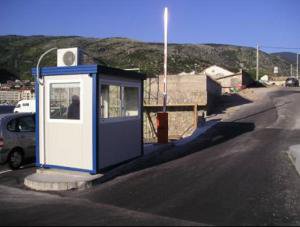

SPARK Cabine M3 toll booth is the mounting and portable facility where is placed needed parking system equipment with billing at the parking slot exit or central billing.

These facilities are part of closed type parking lots, which in addition to the toll booth include entry/exit barriers and INmode/OUTmode parking machines where at the entrance in parking slot user takes ticket which must be saved until leaving the parking lot. When time comes to leave the parking lot, user goes at the toll booth and pays for the time he spent at the parking lot; then the toll booth operator properly issues receipt. To exit the parking lot is very simple - user put confirmed barcode ticket at the OUTmode parking machine and afterwards barrier arm automatically raises and vehicle leaves out of the parking lot.

Today such facilities are successfully being replaced and/or being complemented by the automated systems, or collection is carried out through automatic cash registers - kiosks that Penta also offers under SuperPARK products.

CABINE M3 techincal specification:
DIMENSION: M3-S: 2.0x1.5x2.5m
M3-M: 2.8x1.6x2.5m
M3-L: 3.6x2.4x2.5m
CONSTRUCTION MATERIAL Bearing construction, galvanized steel primed and painted color
5cm thicked walls of corrugated tin plates filled with polyurethane foam
ceiling and floor thickness of 8 cm, PVC
INSULATION thermal K=0,4 and sound from 35db

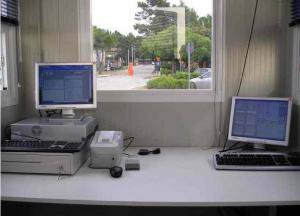

EQUIPMENT doors, half glazed with blinds
window(s), slide opening
desk and chair (mod.M x2, L x3)
lighting (switch and ceiling light, 60W)
installation of electricity, intercom and network
power distribution box and fuses
cabinet for placing the control electronics, UPS, modem...
