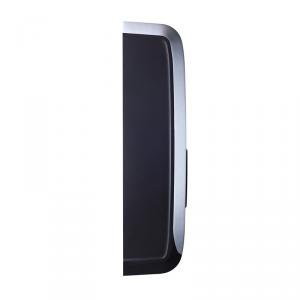

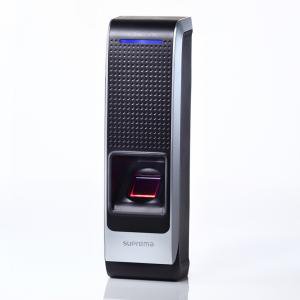

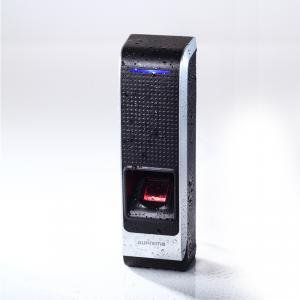

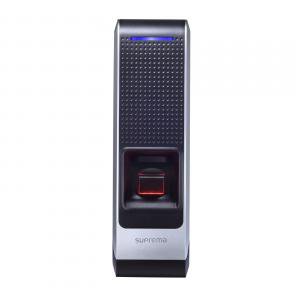

BIOENTRY W
BioEntry W external device perfectly combines the benefits of IP access control and high level of security provided by fingerprint biometrics.
The vandalism-resistant structure of the IP65 makes this device ideal for outdoor installation and it has exceptional durability even in an unfavorable environment.
ADVANTAGES
- Fingerprint recognition technology
- IP65, certified water and dust protection
Ideal for use in difficult environments and for outdoor use
- IK08 Vandalism-resistant structure
Durable Lexan ™ Case with double thickness of pages
- Exceptional performance
1: 2,000 matches in 1 sec
- PoE
Power supply through one CAT5/6
- Different interfaces
TCP/IP, RS485, Wiegand, relay
- RF Reader
HID Prox. Mifare/DesFire, iClass, Felica
Technical specifications BioEntry W
| CPU | 533MHz DSP |
| MEMORY | 8MB ash + 8MB RAM |
| FINGERPRINT SENSOR | Optical |
| RF READER | HID Prox. Mifare/DesFire, iClass, Felica |
| CAPACITY | 10,000 |
| MAX. USERS | 5,000 |
| LOG CAPACITY | 50,000 |
| PROTECTION | IP65 |
| PoE | Yes |
| INTERFACE | TCP/IP, Wiegand, RS485, RS232, TTL I/O, relay |
| SOUND | 16 bit Hi-Fi voice & sound indication |
| OPERATING TEMPERATURE | - 20’C ~ 50’C |
| VOLTAGE | 12vDC |
| DIMENSIONS | W50 x H172 x D42 |
| CERTIFICATE | CE, FCC, KCC, IP65, IK08 |
