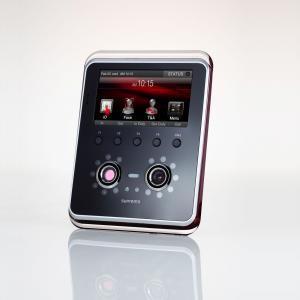

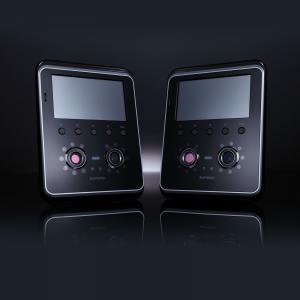

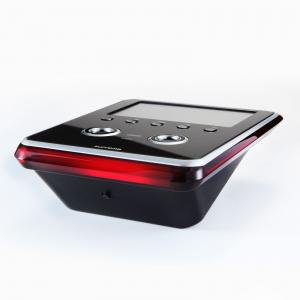

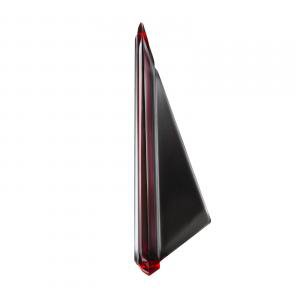

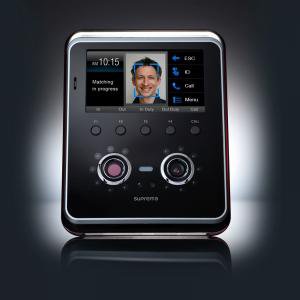

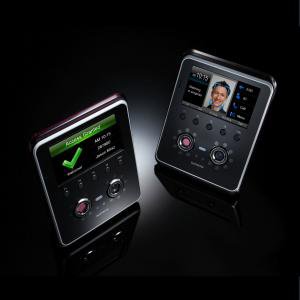

FACE STATION
Face Station terminal for time and attendance recording via contactless RFID card with embedded face detection system makes the perfect combination of providing high security and ease of use. Biometric technology and perfect design hardware provide fast, accurate and secure access control.
Face Station offers a wide range of options and functions thanks to an intuitive touch screen. With embedded web server it is easier to control and supported analog and digital video integration.
ADVANTAGES
- Face Recognition - intelligent technology
Thanks to this technology, it is possible to quickly and easily recognize facial features and bring security to a higher level.
- Intuitive touch screen
4.3" touchscreen display with graphical user interface that is easy to use
- Embedded Web Server, extreme performance
It covers up to 10,000 users with a powerful Dual CPU processor
- Different interfaces
PoE, WiFi, TCP/IP, RS485/232, Wiegand, relay
- Videophone
- Embedded card reader
13.56MHz Mifare/DesFire
Technical specifications Face Station
| CPU | 1.1 GHz DSP, 667MHz RISC |
| MEMORY | 4GB ash, 512MB RAM |
| LCD | 4.3 inch WVGA touch screen |
| CAMERA | Face recognition, face log, videophone |
| RF READER | 13.56MHz Mifare/DesFire |
| CAPACITY | 10,000 (1:1), 1,000 (1:N) |
| MAX. USERS | 10,000 |
| LOG CAPACITY | 1,000,000 / 10,000 image logs |
| PoE | Yes |
| INTERFACE | Wireless LAN(optional), TCP/IP, Wiegand 2ch RS485, RS232, 4 x TTL I/O, 2 x Relay USB (Host & Slave) |
| SOUND | 16 bit Hi-Fi voice & sound indication |
| OPERATING TEMPERATURE | - 20°C ~ 40°C |
| VOLTAGE | 12V DC |
| DIMENSIONS | 132(W) x 165(H) x 60(D ) |
| CERTIFICATES | CE, FCC, KCC, RoHS |
