SUPERTRAX

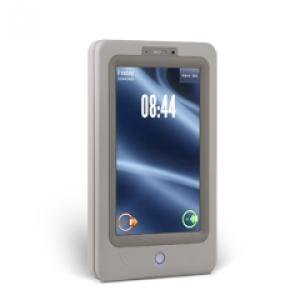

7'' or 10'' high resolution SuperTrax terminals attract the attention of users, the features of the most advanced data collection technology make these terminals modern and stylishly upgraded to a higher level.

Elegant design and an intuitive interface that makes all the data available by fingerprint, sets SuperTrax 7 and SuperTrax 10 among the most advanced terminals time and attendance systems at acceptable prices.

Time&Attendance application is easily integrated and upgraded with other applications such as human resource menagements... SuperTrax 7 offers a 7'' high resolution display while the SuperTrax 10 impressive 10'' high definition resolution screen with integrated camera option. Also, it is possible to install magnetic card reader and barcode reader as an option.

SuperTrax terminals look like the iPhone, and its features look like the most desirable smartphone:

  • high resolution 800x480 (SuperTrax 7) display, 1024x600 (SuperTrax 10) touchscreen
  • vertical and horizontal mounting (rotation of the image on the screen)
  • on-screen alphanumeric and numeric keyboard
  • built-in smartphone (VoIP support and built-in speaker and microphone enable the use of SuperTRAX as a smartphone, intercom, portable)
  • text-to-speech option, thanks to the sound synthesizer based on the text SuperTrax generates a sound signal, ie speech
  • Web browser
  • slideshow options



Technical characteristics SuperTrax

KEYBOARD 1 key with blue led
DISPLAY SuperTrax 7: Display TFT 7” 16:9 800x480, LED backlit, touch screen
SuperTrax 10: Display TFT 10” 16:9 1024x600, LED backlit, touch screen
INTEGRATED READERS Internal RFID reader in any of the technologies supported by TMC:
125KHz EM4102 compatibles (dual - head)
125KHz HID
13.56MHz multi-standard R&W ISO14443/15693 (with Mifare)
13.56MHz Legic advant muti-standard hi-security R&W ISO14443/15693

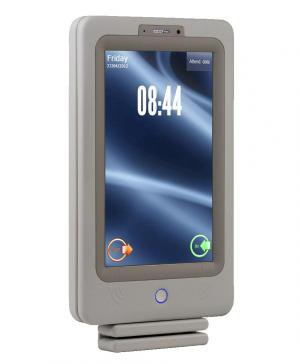

PORTS (OPTIONS) Optional external readers: magnetic or barcode swipe readers - RJ11 and USB for pen or barcode scanner

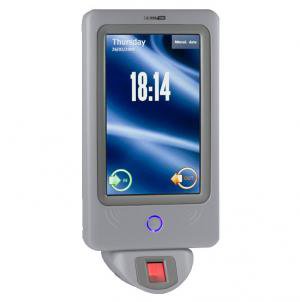

Optional external biometric reader with optical or capacitive sensor - 9500 templates
1:N (TMC recommends up to 1000 users in identification mode)
1:1 with templates on the terminal’s memory or on RFID card
COMMUNICATION PORTS

3 USB 1.1 host ports
1 x Ethernet 10/100 Power Over Ethernet A&B compliant
1 x Serial RS232 optocoupled
1 x RS485 (NET92 master protocol can be enabled)

Options:
WiFi embedded module
GPRS embedded modem
Memory Key (USB)
PSTN 56K analog modem
INPUT/OUTPUT 2 x Relays 1A 30V configurable: Normally Open or Normally Closed
2 x Digital optocoupled inputs for dry contacts
POWER SUPPLY Power Supply: 12….48 VDC 5…7W (up to 10W during fast battery charge) over dedicated connectors or power over ethernet PoE
BATTERY Backup battery: 2 versions: 2 h or 7 h continued operation in case of power failure
DIMENSIONS SuperTRAX 7: 132x232x52 mm
SuperTRAX 10: 320x188x55 mm
Casing: ABS V0, auto-extinguish, IP55
Vertical or horizontal mounting
WEIGHT SuperTRAX 7: 1 kg
SuperTRAX 10: 1,67 Kg
AUDIO & VIDEO 1W Mono Speaker with wav and mp3 playback capabilities
Microphone for recording functions
OS Windows Embedded Compact 7 - .NET compact framework 3.5
FTP server, Web server IE7 compliant jscript and vbscript
Telnet - Remote desktop client
Internet browser (also integrated in internal T&A application)
Light version: without PROC support and basic T&A software
MEMORY 256 MB RAM and 256 MB flash (90 MB available as internal flash disk expandable to GBs with USB Keyfob)
