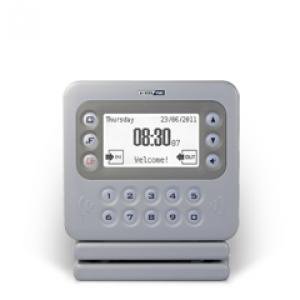

X2
The innovative time and attendance registration device, the X2 terminal perfectly adapts to all situations that require compact and robust devices that still reatin all the features of functionality, technology and design.
The X2 terminal is a great choice according to its performance, cost and quality ratio, a simple and user-friendly solution with an application that allows monitoring and access control, flow of people.
128x64 display clearly shows the time, transaction type if configured, the direction and the result of the transaction accompanied by the audio signal, and all the options available in the terminal menu.

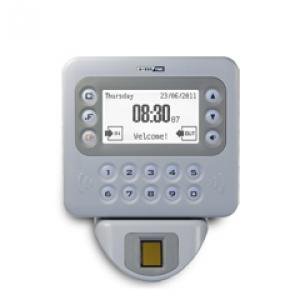

Terminal X2 is available in a variety of reader technologies: the embedded RFID reader is available in 125KHz EM4102, Mifare®, Legic® and HID® versions while the barcode, magnetic card reader and biometric reader are attached to the bottom of the terminal.
The keyboard consists of six (6) function keys located on both sides of the terminal and ten (10) numeric keys used to enter the PIN and associated procedures.
The external USB port gives the user the ability to copy data to USB portable memory in situations when communication with the host is impossible.
The main battery provides continuous operation even in cases of power failure. PoE (Power Over Ethernet) 802.3.af is a standard feature that enables simple system installation.
GPRS-GSM communication is available with the built-in module option.
Technical characteristics X2
| KEYBOARD | 6 membrane function keys on the sides of the display 10 membrane numeric keys (to enter a reason code, a PIN service procedures…) |
| DISPLAY | Transflective, affords excellent visibility even in full daylight 128x64 white LED, up to 7 lines and 24 characters |
| INTEGRATED READERS | 1 internal (RFID 125KHz, Mifare, 13.56 MHz multistandard, Legic, HID) |
| READERS (OPTIONS) | 2 external |
| COMMUNICATION PORTS | Communication: TCP/IP, HTTP and FTP Ethernet : 10/100 Mb/s PoE GSM - GPRS: Optional USB and SD: 1 internal MicroSD (1GB), external host USB |
| INPUT/OUTPUT | 1 internal relay 1A, 30V DC (resistive load), can be used for programmed activations (siren) or for unlocking an access point 2 internal digital input Optional: remote expansion card with 2 relays 1A, 30V DC and 2 digital inputs (NeoMAX) |
| POWER SUPPLY | PoE 802.3.af or from 9 to 50 Volt |
| BATTERY | 1 h continuous operation with automatic power-off facility |
| SW INTERFACE | Interfaceable with XAM middleware to implement and deploy advanced installations in the shortest time |
| PHYSICAL CHARACTERISTICS | Protection: IP55 Housing material: ABS V0 Dimensions: 120x130x52 - HxWxD Weight: 400gr. Temperature: -10 +50 (battery must not exceed 50°) |
| AUDIO & VIDEO | Multi-tone buzzer |
| MEMORY | More than 10 million transactions and more than 100.000 users |
